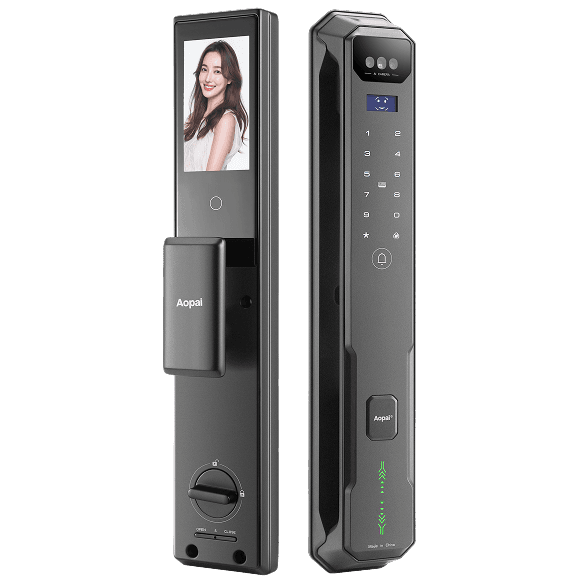

Aopai Smart Lock H06
Aopai H06
| Product Features | Standard Unlock Methods | 3D Facial Recognition, Quick Fingerprint, Numeric PIN, Shuffling PIN, Temporary PIN, Mobile NFC, Mobile Bluetooth, Mobile Mini-Program, Card Swipe, Mechanical Key |
| Remote Video Intercom | Supported | |
| Optional Unlock Method | Bluetooth Remote Control | |
| Compatible Door Types | Wood Door, Steel Door | |
| Compatible Door Thickness | 45–120 mm | |
| Supported Lock Bodies | Standard Lock Body, Heavy-Duty Lock Body | |
| User Height Range | 1.2 m–2.0 m | |
| Electronic Peephole | Supported | |
| Electronic Doorbell | Supported | |
| Fingerprint Sensor Type | Semiconductor Fingerprint Sensor | |
| Fingerprint Capacity | 50 Prints | |
| Card Capacity | 100 Cards | |
| PIN Capacity | 100 PINs | |
| Face User Capacity | 50 Profiles | |
| Alarm Modes | Low-Voltage Alarm, Lockout Alarm, Tamper Alarm, Duress Alarm | |
| Loitering Capture | Supported | |
| One-Touch Outdoor Lock | Supported | |
| One-Touch Indoor Deadbolt | Supported | |
| Network | 2.4 GHz Wi-Fi | |
| Bluetooth | Bluetooth Low Energy | |
| Bluetooth Unlock Range | 10 m | |
| EMI Protection (Anti-Black-Box) | Supported | |
| Apartment Management Mode (Multi-Device) | Supported | |
| Hardware Specifications | Cylinder Type | Fully Automatic Anti-Theft Cylinder |
| Enclosure Protection Rating | IP52 | |
| Camera Resolution | 1080P | |
| Camera Field of View | 90° Wide-Angle | |
| Rear Display Size | 4.5-inch | |
| Battery Capacity | 4200 mAh Lithium Battery | |
| Standby Endurance | ≥ 3000 Opens (Aopai Lab Data) | |
| Emergency Power Input | 5 V 1 A Micro USB | |
| Corrosion Resistance | 96 h Neutral Salt Spray | |
| Operating Temperature | –25 °C to 65 °C | |
| Operating Humidity | ≤ 90 % RH | |
| ESD Resistance | Air 15 kV, Contact 8 kV (IEC 61000-4-2 Level 4) | |
| Main Material | Aluminum Alloy | |
| Dimensions | Front Panel: 423 × 75 × 52.3 mm; Rear Panel: 423 × 81 × 75.7 mm | |
| Weight (kg) | 3.2 |
